홈 /제품 소개/모듈형 상자 제조 기계/Thermoforming making Machine for Biodegradable Plastic Food Box Plastic Fruit Box Or Tray

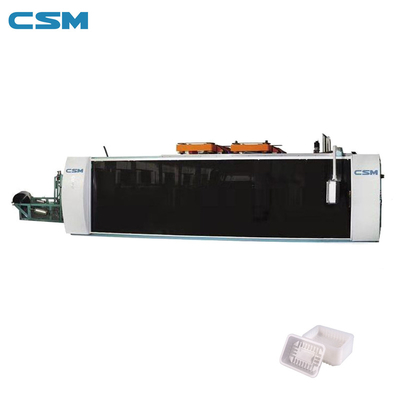

Thermoforming making Machine for Biodegradable Plastic Food Box Plastic Fruit Box Or Tray

$75,000.00/Pieces >=1 Pieces
가격
Thermoforming making Machine for Biodegradable Plastic Food Box Plastic Fruit Box Or Tray
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
처리식: 플라스틱 열성형 기계
플라스틱 형태: PVC, PS, PA, PP, PET
Max.Forming 높이(MM): 120mm
형성 폭 (밀리미터): 780 밀리미터
성형 길이 (밀리미터): 700 밀리미터
생산 속도 (분 사이클스 /): 20-25cycle/min
화면 출하검사: 제공됩니다
기계류 테스트 리포트: 제공됩니다
마케팅 타입: 신제품 2020년
핵심 구성 요소의 보증: 1년이요
핵심 구성 요소: PLC, 모터, 압력 용기, 기어, 펌프
공기 압력(Mpa): 0.6 Mpa
시트 두께(MM): 0.1 - 2.5 밀리미터
히팅 파워 (kW): 30kw
공기 Comsumption(L/min): 130 L/Min
물 Comsumption(L/min): 100 L/Min
상태: 새롭습니다
상품 종류: 패스트 푸드 상자
전압: 380V ±10%
차원(L*W*H): L900CM*W220CM*H270CM
(T)에 짓누르세요: 7 Ｔ
보증: 1년이요
적용 가능한 산업: 공장을 제조한 호텔, 음식 & 음료 공장, 식당, 가정용, 소매점, 식품 판매점, 식료품 상점
핵심 판매 요소: 높은 생산성
전시실 위치: 베트남, 파키스탄, 인도, 스리랑카, 나이지리아
완성품: 버릴 수 있는 빠른 푸드 박스, 샐러드 과일 상자, 트레이 화장품, 컵 덮개
활용 범위: 식료품 용기, 과일 넓적한 광주리, 대합조개 껍질, 트레이
재료: 힙스, PVC, PS, PA, BOP, PP, 봅프, EPS, PET
형성 방법: 위 아래로 (2단계 노) 형성
애프터 서비스는 제공되었습니다: 비디오 기술 지원, 무료 예비 부품, 현장 설치, 시운전 및 교육, 현장 유지 보수 및 수리 서비스, 온라인 지원
보증서 서비스 뒤에: 비디오 기술 지원, 온라인 지원, 예비품, 현장 유지 보수와 수리 서비스
로컬 서비스 위치: 베트남, 인도, 스리랑카, 나이지리아
기본 정보
인증: ce
결제 및 배송 조건
제품 설명
Product Overview

Three Station Lunch Box Plastic Negative Pressure Machine

The machine combines forming, cutting, and stacking into process,which is widely used and acknowdged by most of our customer. It can produce boxes, trays, fast food boxes, dishes, lids, cookies tray, egg tray, mobile phone tray & other blister tray, etc. The machine is completely driven by servo motor with features of stable operation, low noise, high efficiency and quality.
Technological process:
---Carrying material(cylinder drives the chain to work)
---heating(cylinder drives the electric furnace to lift in order to make a proof)
---pulling( cylinder drives the chain)
----lifting the lower die, falling the upper die(cylinder drives)
----vacuum forming(vacuum pump air admission )
---cooling(gas drives the spray gun to work, electric machinery drives the air
blowing)
----drawing of patterns(gas drives)
---pulling-cutting
---stacking on the line.
Product Paramenters
No.
Item
Data
1
Suitable Products
Disposable plastic lids,egg trays,clamshell boxes, containers, plates
2
Suitable Materials
PVC.PP.PET.PS.HIPS.PE.HDPE.PC.ABS.PLA sheet
3
Forming Size:
W780*L700mm
4
Thickness Range
0.1-2.5mm
4
Forming Area:
815mm
5
Max.Forming Depth
120mm
6
Industry Voltage
380V/50Hz (Three Phase, Four Wires)
7
Total Power/Actual power consumption
Heating oven Max. 85 KW, usually use 20-45KW/h
8
Max. Speed
20-25 Cycles per minute(Depending on material and thickness)
9
Max. Punching Force
80 Tons
10
Air Pressure
0.6MPa
11
Air Consumption
> 4000ℓ/min ( with Forming body )
12
Cooling Water
Normal Tap Water Recycle Cooling
13
Noise
<75DB
14
Machine Dimension
6000kg
Main Feature
A. This machine adopts integrated gas and electricity loading system.
B. Stainless steel pressure roller and automatic feeding (single roll material weight can reach 600-1000KG)
C. The pre-heating device is installed on both sides of the film.
D. There are multiple excessive rollers to ensure that the material will not running when stretching the sheet.
E. The heating furnace has forward and backward functions. It uses photoelectric eyes to detect the sag of the sheet after heating. When it exceeds a certain limit, it provides an alarm and has function of Exit the heating furnace to prevent the sheet from falling out of the heating furnace and causing fire.

Main Configuration
No.
Part
Brand
1
Vacuum Pump
Rietschle Germany
2
PLC
Delta Taiwan
3
Touch Screen
Delta Taiwan
4
Vacuum Solenoid Valve
SMC Japan
5
Temperature Control Module
AOYI
6
Auxiliary Relay
Schneider France
7
AC Contactor:
Schneider France
8
Air Switch
Schneider France
9
Transducer
Omron Japan
10
Linear Guide
Hiwin Taiwan
11
Oil-water Separator
Mindman Taiwan
12
Clamp Servo Motor
Delta Taiwan （4.5KW）
13
Upper mold Solenoid valve
Delta Taiwan
14
Lower mold Solenoid valve
Delta Taiwan
15
Decelerator
FALK  USA
16
Bearing
SKF Swiss
Related Product
Company Profile
Customer Networking
Contact Us
Looking forward to cooperating with you!
Contacts
Ms. Katy Tian
Email
katy_tian@csmformingmachine.com
Mob/Whatspp
+86 13681660491
Wechat
13681660491
Facebook
https://www.facebook.com/katy.tian.775/
Youtube
https://www.youtube.com/channel/UCzAUHVCnbT6b3HEDJEDo6EQ
Address
 Room 606-2 ,No. 799, Yinxiang Road, Changhui Tower, Jiading District, Shanghai, China
FAQ
Q1: Are You Manufactory or Trade Company?

A: We are the 100% Manufactory specialized in thermoforming industry for plastic disposable packaging over 10 years with 1,000 square meters workshop area, located in Huzhou, Zhejiang Province, which it's 2 hours by car from Shanghai Pudong Airport to our factory. You are warmly welcome to visit our factory.

Q2: What is the material you used? Is it food grade or eco friendly?

A: The main materials we used is PLA, PET, PP, PS, PVC, PC All the materials we used is food grade and eco friendly which pass ROHS, GRS, SGS,ISO9001,ect., EXCEPT PVC. PVC is not food grade materials. Mainly used to pack electronics and harware.

Q3: Can you provide OEM and ODM services?

A: We'll supply you the best quality and service and provide you with good advice beyond your requirements. The lines are easily for installation with low maintenance requirements.Yes. About OEM, you can customize machine such as printing your logo on, color and packaging. About ODM, our factory has a professional team with rich experience in the design and manufacture of plastic forming machines. Just tell us your idea and we will help to find the optimal solution.

Q4: Is there quality control when manufacturing the lines?

A: Certainly, we have a group of team who will be responsible for quality control from laying off the raw material, processing the rollers and the other parts, making treatment on the roller surface and shaft, assembling, testing and packaging.

Q5: What's your strength comparing to the other supplier?

A: We'll supply you the best quality and service and provide you with good advice beyond your requirements. The lines are easily for installation with low maintenance requirements.
